PDF下載產品參數
| 型號 Model |
步距角 Step angle |
電壓 Voltage (V) |
電阻 Resistance (Ω) |
相 Phase |
驅動方式 Drive mode |
最大啟動頻率 Max. starting frequency (pps) |
最大回轉速度 Max. slew speed (pps) |
保持力矩 Holding torque |
絲桿 Lead screw |
|
| 直徑 Major Dia |
導程 Lead pitch |
|||||||||
| 10BY25T-01 | 18° | 5.0 | 55 | 2-2 | Bipolar | 800 | 1200 | 6.0 | Ø2.0 | 0.4 |
| 10BY25T-02 | 18° | 5.0 | 35 | 2-2 | Bipolar | 800 | 1200 | 6.0 | Ø2.0 | 0.4 |
| 型號 Model |
步距角 Step angle |
電壓 Voltage (V) |
電阻 Resistance (Ω) |
相 Phase |
驅動方式 Drive mode |
最大啟動頻率 Max. starting frequency (pps) |
最大回轉速度 Max. slew speed (pps) |
保持力矩 Holding torque |
Pinion | ||
| Module | PCD | Z | |||||||||
| 10BY25-01 | 18° | 5.0 | 14 | 2-2 | Bipolar | 900 | 1500 | 16 | - | - | - |
| 10BY25-02 | 18° | 5.0 | 22 | 2-2 | Bipolar | 1250 | 2000 | 15 | 0.25 | Ø3.25 | 13 |
| 10BY25-03 | 18° | 5.0 | 20 | 2-2 | Bipolar | 1000 | 2000 | 15 | 0.25 | Ø3.25 | 13 |
| 10BY25-04 | 18° | 5.0 | 22 | 2-2 | Bipolar | 1000 | 2000 | 20 | 0.25 | Ø3.25 | 13 |

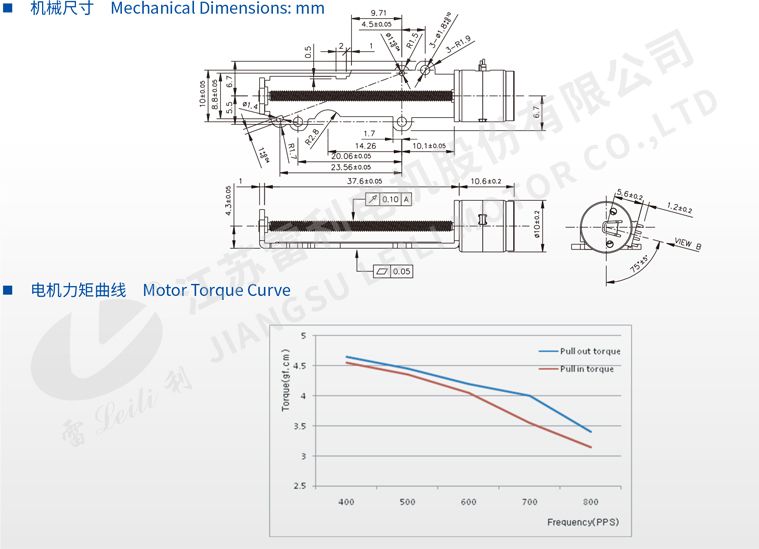

機械尺寸
